Elegant Hybrid Core 115

ELEGANT
Hybrid Core 115

Flat

The Hybrid Core 115 / Flat series opens new horizons in modern architectural design for residential and commercial spaces, thanks to its innovative concept that allows oversized entrance doors while adding prestige and elegance to the building façade. It maintains a minimalist character and flush surface alignment.

The advanced design, combined with the system’s state-of-the-art technological features, guarantees the creation of high-end entrance doors with outstanding performance in terms of security, insulation, and functionality.

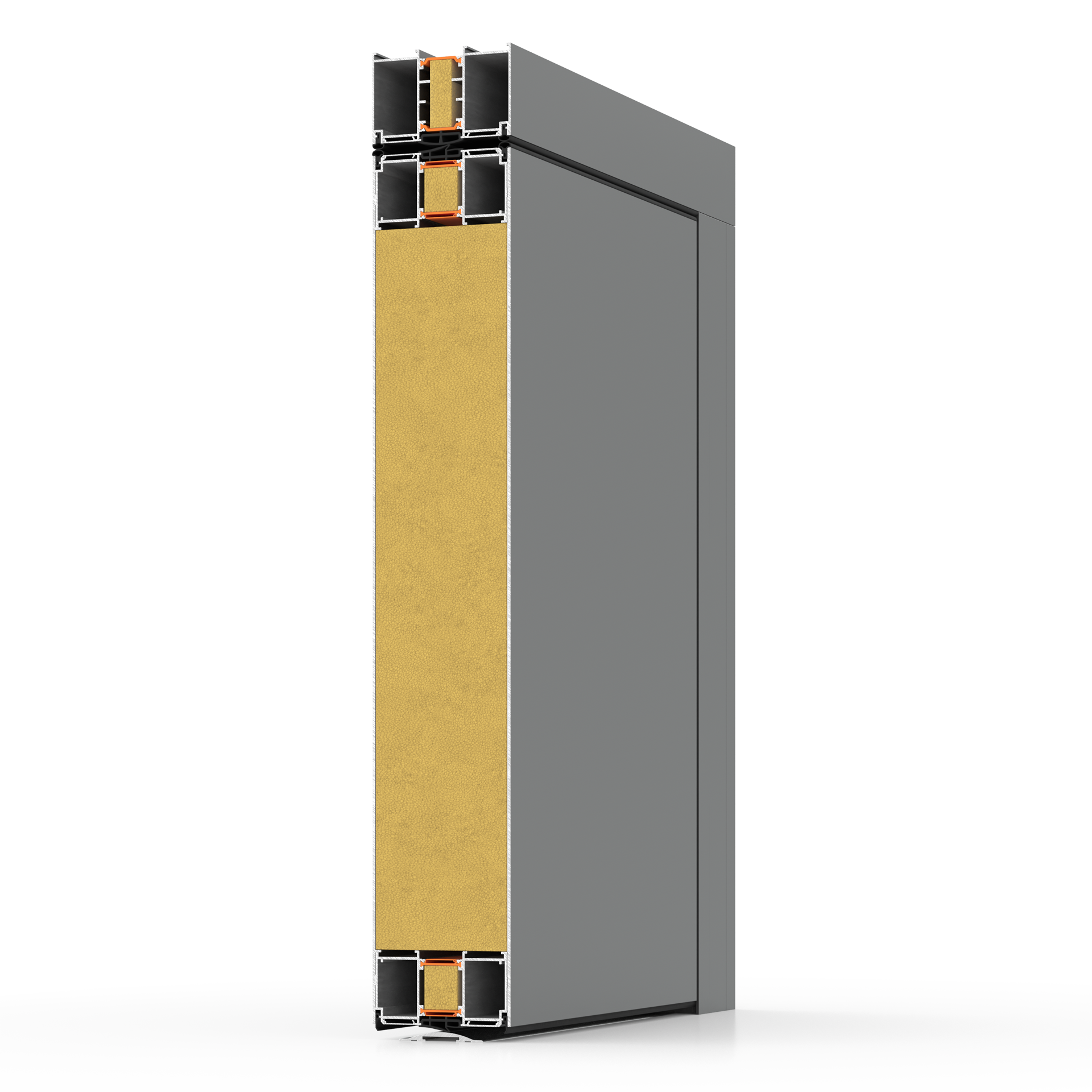

Core system width: 115 mm, expandable up to 126 mm
Threshold height of just 7 mm for easy access for people with disabilities
Special profiles for the construction of all entrance door typologies
Adjustable Pivot mechanism

Performance

Thermal Insulation
According to EN 10077-1:2009-11

U_d = 0,7 W/m²K

(For dimension 2 x 3 m)

Air Permeability
According to EN 12207:2016-12

Class: 3

Wind Pressure Resistance
According to EN 12210:2016-03

Class: C5/B5

Water Tightness
According to ΕΝ 12208:1999-11

Class: 7A

Ηχομείωση
Σύμφωνα με EN 14351-1:2016

Rw (C;Ctr) = 45 (-1;-4) dB

Burglary Resistance
According to EN 1627:2011-05

Class: RC 3

High Performance and Security

HOB DOORS are evaluated according to specific technical specifications that determine their performance in demanding environments. Compliance with European standards is a key criterion for the technical assessment and certification of the systems.

Each evaluation parameter plays a crucial role in the functionality and long-term reliability of the door, meeting the demands for high performance and security.

OUR CERTIFICATIONS

Accessories

Standard 3-Point Lock

Offers high-quality performance and security, ensuring a proper door seal thanks to its ability to lock at 3 points.

R6 Plus Cylinder

Designed for access points requiring basic security, the R6 Plus combines the features of the R6 cylinder with additional master keys and a site key.
The Code Card provided as standard ensures the manufacture of quality duplicates, while the plastic cap on the key head further enhances ease of use.

Automatic 3-Point Lock

Automatic multi-point locking that ensures proper door sealing and delivers high-quality performance and security.
Can be paired with an electric motor for added convenience and usability.

Biometric Security Systems

Keypad with a sleek design that offers both security and usability for building entry. Supports remote management via the internet.

Fingerprint Reader that provides a sense of security and ease, making the use of physical keys optional.

Hybrid System combining keypad and fingerprint reader, giving users the flexibility to customize access according to their needs.

Available colors: Black & Silver.

Control Unit

Used in combination with other power transfer cables. Operates via mobile app, remote control option, or manual mode.
Includes LED connection and 2 relay output terminals.

PIVOT Mechanism

Capable of supporting up to 500 kg.
Horizontal adjustment at the top of the mechanism: ± 5mm.
Horizontal adjustment at the bottom of the mechanism: ± 3mm.

Concealed Closing Mechanism Capable of handling door leaves up to 1400 mm wide and 120 kg in weight, without compromising on elegance or discretion. It features multiple adjustment options for optimal door performance.

Standard Handles

High-quality and aesthetically refined, functional and durable, adaptable to all needs thanks to a variety of lengths and designs.

Available colors: Inox, Black.

Biometric Handles Capable of integrating hybrid systems on both the front and back of the handle, as well as concealed LED lighting at the rear side of the handle.

Recessed Handle

A unique, high-quality accent for a distinctive style that meets specialized needs and refined aesthetics.
Optional concealed LED lighting available.

Power Transfer

The Secure 50 provides the ideal power supply for your pivot door, eliminating the need for wiring.
With just two metal contacts, it ensures power delivery to the door for the proper operation of its integrated gadgets.

Designs

Unique Designs, Colors, and Finishes

With the wide range of HOB DOORS designs, colors, and finishes, you’re sure to find the perfect design that highlights your space and makes it stand out!
