Elegant Adaptive Hybrid Core 77 / Multi Level

ELEGANT
Adaptive Hybrid Core 77

Multi Level

The Hybrid Core 77 / Multi Level series concerns high-quality entrance doors requiring modern three-dimensional design, high performance, and a high level of security. The system provides the capability to create entrance doors with aluminum sheet featuring multiple levels, emphasizing the three-dimensional character it imparts.

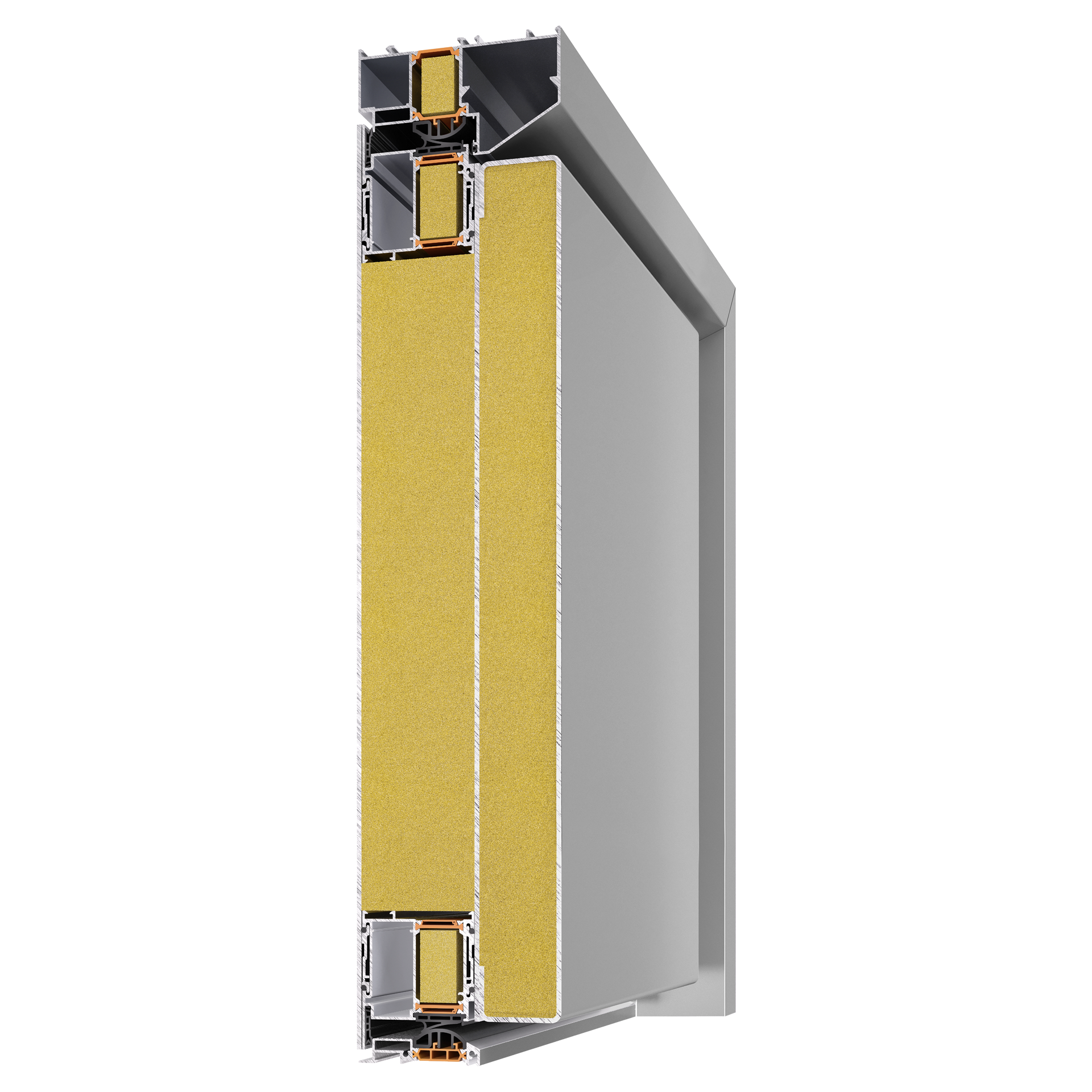

Basic system width 127 mm
Anti-slip threshold 16 mm for easy access for people with disabilities
Special profiles for the construction of entrances of all typologies
Anti-warping polyamides & reinforcing bar to reduce deformation caused by temperature differences

Performance

Thermal Insulation
According to EN 10077-2

U_d = 0,86 W/m²K

(For dimension 1,3 x 2,3m Up = 0,3 W/m²K)

Air Permeability
According to EN 1026, ΕΝ 12207

Class: 4

Wind Pressure Resistance
According to EN 12210, ΕΝ 12211

Class: C4

Water Tightness
According to EN 1027, ΕΝ 12208

Class: 7A

Ηχομείωση
Σύμφωνα με EN 14351-1:2016

Rw (C;Ctr) = 45 (-1;-4) dB

Burglary Resistance
According to EN 1627-1630

Class: RC 2

High Performance and Security

HOB DOORS are evaluated according to specific technical specifications that determine their performance in demanding environments. Compliance with European standards is a key criterion for the technical assessment and certification of the systems.

Each evaluation parameter plays a crucial role in the functionality and long-term reliability of the door, meeting the demands for high performance and security.

OUR CERTIFICATIONS

Accessories

3 & 5-Point Automatic Lock

Automatic multi-point locking that ensures proper sealing of the door and offers high-quality performance and security with latch and hook bolt. Can be paired with an electric motor for added convenience and usability.

R6 Plus Cylinder

Designed for access points requiring basic security, the R6 Plus combines the features of the R6 cylinder with additional master keys and a site key. The standard Code Card ensures the creation of quality duplicates, while the plastic cap on the key head further enhances ease of use.

Biometric Security Systems

Keypad with an elegant design that offers both security and functionality for entering the building. Allows for remote management via the internet.

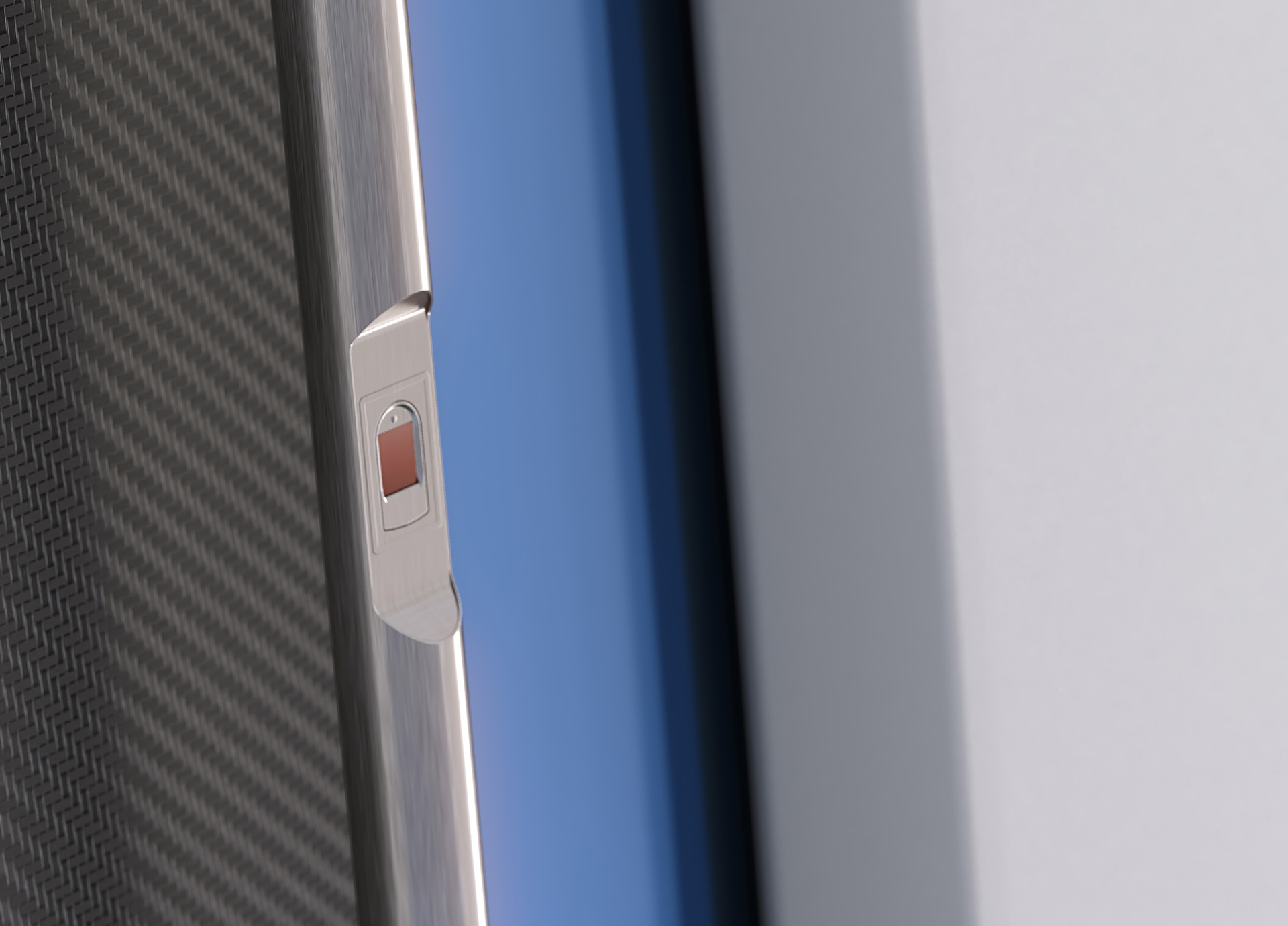

Fingerprint Reader that provides a sense of security and convenience, making the use of physical keys optional.

Hybrid System combining keypad and fingerprint reader, giving users the flexibility to adapt usage based on their needs.

Available colors: Black & Silver.

Power Transfer

Safe power transfer (even for LED use) via protective spiral conduit between the door and frame, safeguarding the cables from wear during the door’s opening and closing.

Standard Hinge

Heavy-duty hinge of high specifications with three-way adjustment for optimal door performance. Maximum weight capacity of 160 kg using 2 hinges.

Visible 3D Hinges

Visible hinges that offer exceptional long-term durability and feature adjustments for smooth and proper door operation. Compatible with back-locking mechanism for enhanced security.

Available colors: Inox Anodized, Black Anodized, Natural Anodized
Supports door weight up to 160 kg with 2 hinges

Concealed Hinge

Adjustable and discreet, maintaining the minimal and elegant character of our doors. Compatible with back-locking mechanism for added security.

Available color: Silver
Supports door weight up to 120 kg with 2 hinges

Drop Seal

An economical and reliable folding seal that automatically covers the gap between the door and the floor when the door is closed, protecting the space from air and smoke.

Panic Bar

Compatible with multi-point locking systems, offering high security against forced entry as well as in emergency situations. Provides easy operation on doors weighing up to 300 kg.

Available colors: Silver, Black-Red.

Concealed Door Closer

Capable of handling door leaves up to 1100 mm wide and 120 kg in weight, without compromising on elegance and discretion. Offers multiple adjustment options for optimal door performance.

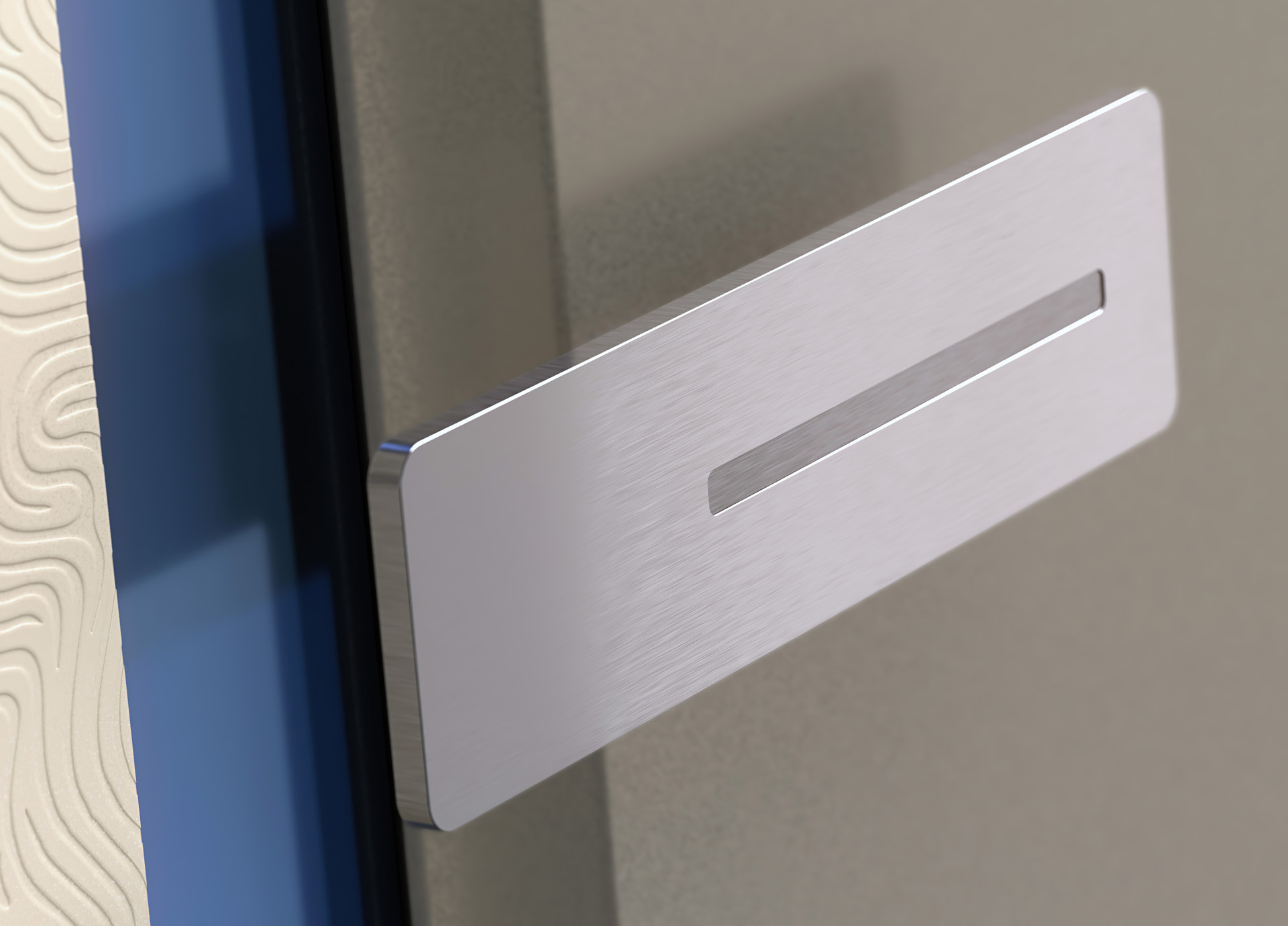

Standard Handles

High-quality and aesthetically refined, functional and durable, with adaptability to all requirements thanks to the variety of lengths and designs.

Available colors: Inox, Black.

Recessed Handle

A unique, high-quality feature for a distinctive style that meets specialized needs and refined aesthetics. Option for integrated LED backlighting.

Biometric Handles

Capability to adapt hybrid systems on the front and back of the handle, as well as hidden LED lighting on the back of the handle.

Handles

Perfectly harmonized with your door. They combine the durability and quality of aluminum, offering resilience and ergonomics, and can now be painted in the same color as your door, creating a flawless aesthetic result.

Designs

Unique Designs, Colors, and Finishes

With the wide range of HOB DOORS designs, colors, and finishes, you’re sure to find the perfect design that highlights your space and makes it stand out!

ALL THE DESIGNS

COLORS/FINISHES
